Berner ARE16-3144E-3
SKU #: ARE16-3144E-3
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
In Stock
Price
$8,235.88 / Each
Specifications
| Brand | Berner |
|---|---|
| Made in | USA |
| Horsepower | 1 HP |
| Speeds | 2 |
| Number of Motors | 3 |
| Certifications | cULus |
| Heat Type | Electric Heat |
| Mounting | Mounting Heights up to 16' |
| Series | Architectural Series |
| Style | Recessed |
| Width (in) | 144.00 |
| Height (in) | 15.00 |
| Depth (in) | 26.00 |
| Length (in) | 144" Long |
| Weight | 423.00 |
Additional Information
- cULus
You May Also Need
Berner 80PLE1F2FLO-12BK Berner 9503MRS1F2-NC-K $12.59 /Each
Berner 9503MRS1F2NCK-BR $12.59 /Each
Description

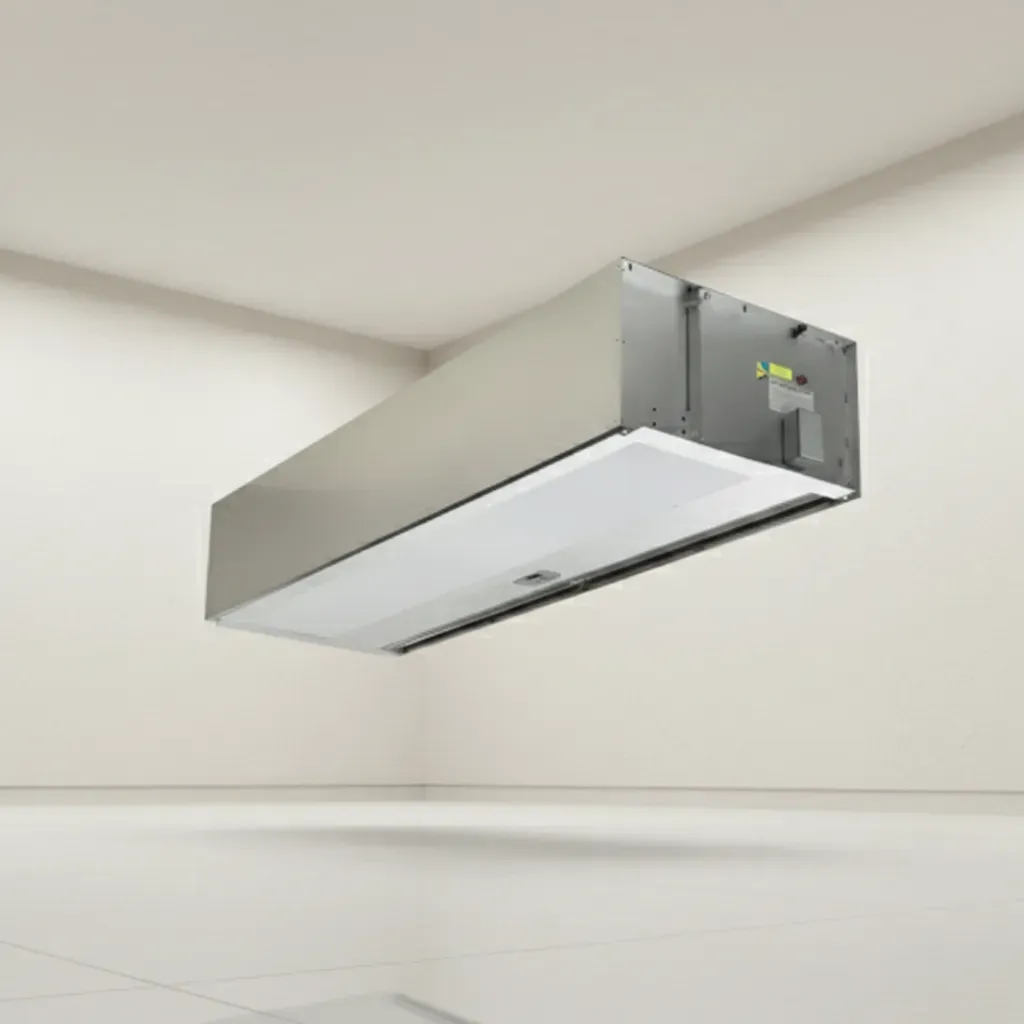

The Berner ARE16-3144E-3 is a high-performance architectural series recessed air curtain designed for seamless integration into your space. Measuring 144 inches in length, this electric heated air door features three powerful 1 hp motors that operate on two speeds, ensuring optimal air flow and temperature control. The Intelliswitch controller allows for easy operation and customization. Its hinged white aluminum bottom access panel provides convenient maintenance access. Suitable for mounting heights of up to 16 feet, this high voltage model operates on three-phase power with a robust output of 42kW. cULus certified and proudly made in the USA, the Berner ARE16-3144E-3 combines efficiency and durability for effective climate separation in commercial environments.
What's Included:
Guarantee: Heated units come with a two-year warranty for parts.
Important shipping notice: If special freight charges are required, additional fees will be included on the invoice; charges may vary; reach out to the factory for more details.
Note: Limited KW available; reach out to the manufacturer
Freight Note: Please provide the contact name, phone number, and/or email when placing the order.
Important shipping notice: If special freight charges are required, additional fees will be included on the invoice; charges may vary; reach out to the factory for more details.
Note: Limited KW available; reach out to the manufacturer
Freight Note: Please provide the contact name, phone number, and/or email when placing the order.
