$489.11 /Each
Jade Range JFLH-04R-T-72
SKU #: JFLH-04R-T-72

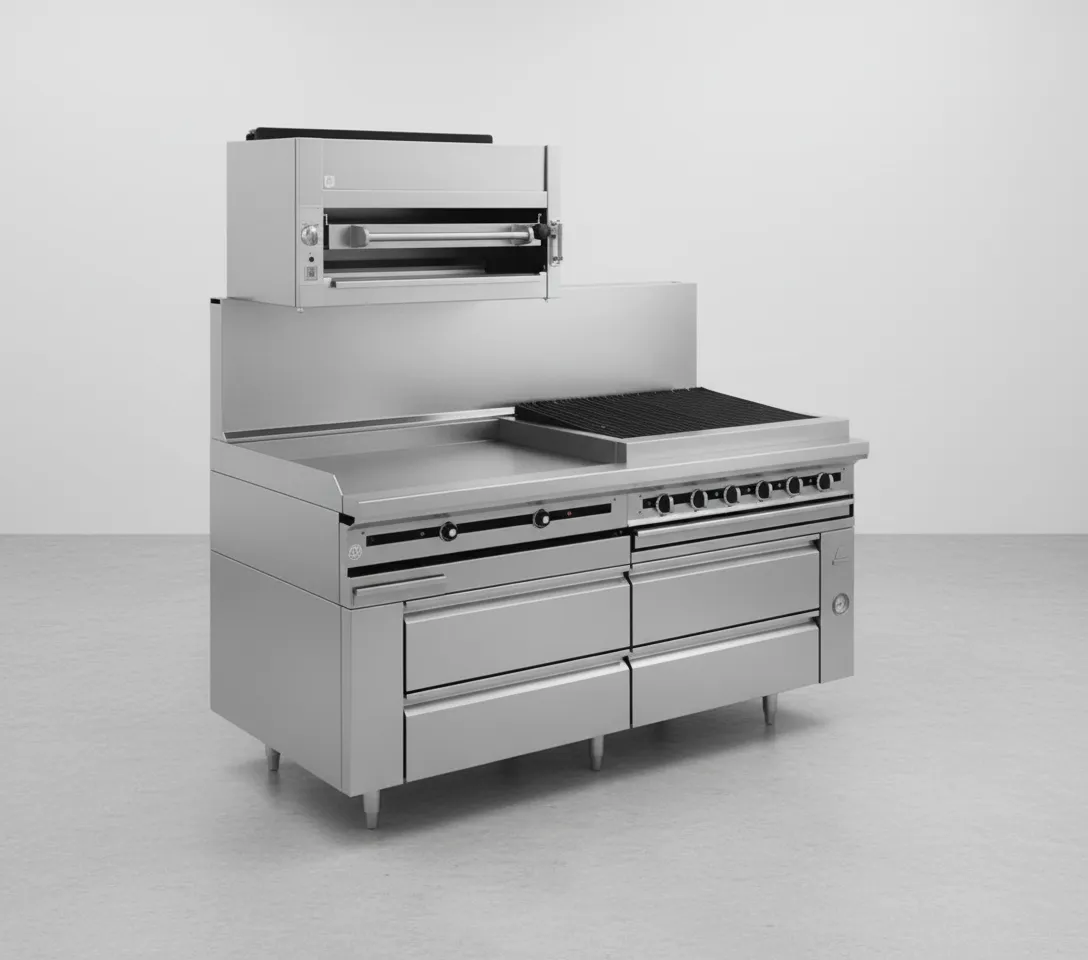

Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
In Stock
Retail Price
$18,753.74 / Each
Specifications
| Brand | Jade Range |
|---|---|
| Construction | Stainless Steel |
| Width Range | 61 to 76 Inches |
| Refrigerant Type | R-404 |
| Series | Titan™ Fire & Ice™ |
| Compressor Location | Remote |
| Number of Drawers | 4 |
| Sections | 2 |
| Voltage | 115 Volts |
| Width (in) | 72 |
| Height (in) | 25.00 |
| Depth (in) | 34.00 |
| Weight | 475.00 |
Additional Information
You May Also Need
Jade Range RBT-6 Jade Range RBT-12 $561.09 /Each
Jade Range RBT-18 $823.64 /Each
Jade Range RBT-24 $1,131.62 /Each
Jade Range RBT-30 $1,395.35 /Each
Jade Range RBT-36 $1,641.97 /Each
Jade Range RBT-42 $1,846.70 /Each
Jade Range RBT-48 $2,050.25 /Each
Jade Range RBT-54 $2,279.76 /Each
Jade Range RBT-60 $2,511.04 /Each
Jade Range RBT-66 $2,741.14 /Each
Jade Range RBT-72 $2,970.65 /Each
Jade Range RBT-78 $3,652.10 /Each
Jade Range RBT-84 $4,334.73 /Each
Jade Range RBT-90 $4,738.88 /Each
Jade Range RBT-96 $5,143.03 /Each
Description
The Jade Range JFLH-04R-T-72 Titan™ Fire & Ice™ Freezer Base is a robust equipment stand designed for remote refrigeration applications. Measuring 72 inches, it features four removable drawers, each measuring 27-1/4 inches, providing ample storage for your ingredients. The unit accommodates up to seven 12" x 20" x 6" deep pans (pans sold separately), ensuring efficient organization and accessibility. Equipped with face-mounted dial thermometers for precise temperature monitoring, the stainless steel front and sides offer durability and easy cleaning. The 6" adjustable legs provide stability on various surfaces, while the unit operates at 4.4 amps, meeting cETLus safety standards.
What's Included:
Build: All units are fully welded, constructed with heavy-duty materials, featuring stainless steel sides and front as standard
Utility Details: Additional Info - Refrigerant suction inlet is 3/8" in diameter, refrigerant suction outlet is 1/4" and drain is 5/8" in diameter. The electrical connection to the Junction Box (with neutral, ground, and hot wires - hardwired) at the back of the Remote base must be done by a certified electrician during installation.
Utility Details: Additional Info - Refrigerant suction inlet is 3/8" in diameter, refrigerant suction outlet is 1/4" and drain is 5/8" in diameter. The electrical connection to the Junction Box (with neutral, ground, and hot wires - hardwired) at the back of the Remote base must be done by a certified electrician during installation.
